Tarot 25mm Orange Suspension Anti Vibration T-Motor Mount Mount for T810/T960/TL 100B01 Drone TL9602

Item Name:

Tarot 25mm Orange Suspension Anti Vibration Motor Mount Base - TL96028

Product Description:

Made of 6061T6 aluminum alloy, fully CNC precision machining, suitable for Φ25MM carbon tube DIY six-axis or eight-axis aircraft frame (T810/T960/TL

100B01) component, with ESC mounting position. The electric adjustment carbon fiber plate is made of imported Toray 3K pure carbon fiber woven cloth, which is prefabricated under high temperature and high pressure and fully CNC precision processing.

The quality of the 2.0-thick pure carbon matte twill carbon fiber plate exceeds that of conventional commercially available products. Comprehensive performance exceeds national standards

Requirements for high-strength first-level performance indicators of carbon fiber strip plates. The overall design of the lightweight two-color metal parts has a strong

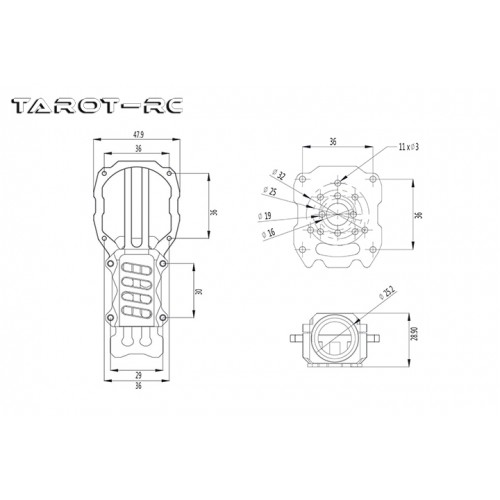

The visual impact effect provides a good visual direction for the aircraft in the air. Motor installation hole distance: 16MM/19MM/25MM/

27MM equilateral triangle installation.

Specifications:

Pure carbon fiber ESC fixing plate × 1 (62 × 29.3 × 1.3MM) 2.2G

Pure carbon fiber motor adapter plate × 1 (52×45×2.0MM) 5.2G

Metal Φ25MM motor holder × 1 (92.5×48×27MM) 36.0G

M3×10MM cup head hexagon socket screw × 4

M2.5×6.5 hexagon socket stepped screw × 4

M2×6MM flat head hexagon socket screw × 4

Remark:

Motor is not included.

These photos are reference only.The design may be changed by the factory without notice.

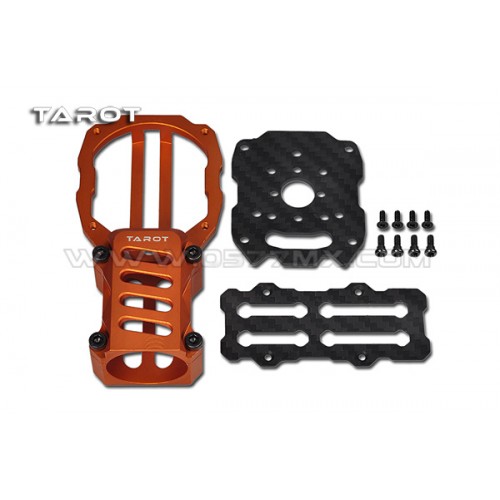

Includes:

1 Pcs Tarot 25mm Orange Suspension Anti Vibration T-Motor Mount Mount
